Teerasil Fittings and Plates, a well-respected manufacturer and supplier based in Bangkok, Thailand, specializes in top-quality Stainless Steel 304 / 304L Forged Fittings that are built to last. These fittings are known for their durability, precision, and outstanding resistance to corrosion. SS 304 is the go-to stainless steel for many applications due to its strength and ability to resist oxidation, while SS 304L, the low-carbon version, offers excellent weldability and reduces the risk of carbide precipitation. Crafted under rigorous quality standards, our forged fittings guarantee leak-proof performance, precise dimensions, and a long lifespan. They find extensive use in industries like chemical processing, oil and gas, food production, pharmaceuticals, and water treatment, where hygiene, strength, and reliability are crucial.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Stainless Steel 304 / 304L Forged Fittings mainly consist of 18–20% chromium, 8–12% nickel, and the balance being iron, with carbon levels of ≤0.08% for 304 and ≤0.03% for 304L. SS 304 is known for its superior strength, while SS 304L excels in weldability and resistance to intergranular corrosion. In terms of mechanical properties, they provide a tensile strength of around 485–515 MPa, yield strength of approximately 170–205 MPa, and good elongation, ensuring toughness across a broad temperature range. Their remarkable resistance to oxidation, chloride stress cracking, and harsh environments guarantees long-lasting performance in high-pressure and demanding industrial piping applications.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Teerasil Fittings is a leading supplier of Stainless Steel 304/304L Forged Fittings in Bangkok, Thailand. We offer an extensive range of Stainless Steel 304/304L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Products | Size | |
|---|---|---|

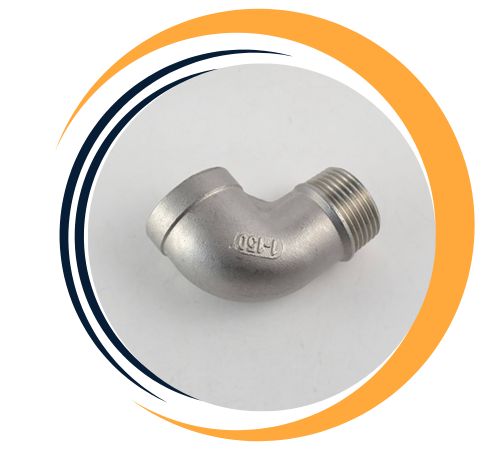

| ASTM A182 SS 304 Forged 90° Elbow | ASTM A182 SS 304 Forged 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

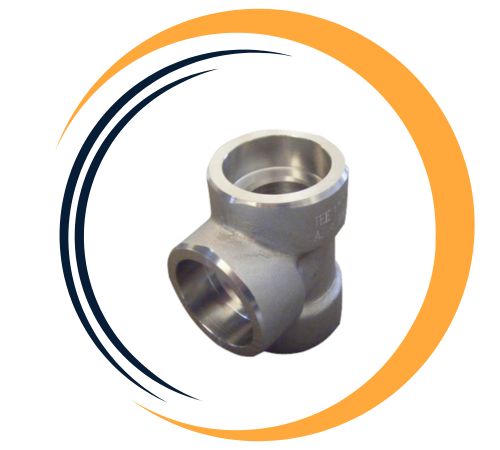

| ASTM A182 SS 304 Forged Tee | ASTM A182 SS 304 Forged Union | |
| ASTM A182 SS 304 Forged Cross | ASTM A182 SS 304 Forged Insert | |
| ASTM A182 SS 304 Forged Bushing | ASTM A182 SS 304 Forged Pipe Nipple | |
| ASTM A182 SS 304 Forged Cap | ASTM A182 SS 304 Forged Coupling | |
| ASTM A182 SS 304 Forged Plug | ASTM A182 SS 304 Forged Street Elbow | |
Choose Stainless Steel 304/304L Forged Fittings from Teerasil Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 304/304L forged fittings offer many advantages, including superior corrosion resistance, especially in acidic and alkaline environments, and their high tensile strength and toughness ensure durability under stress and temperature conditions even at higher levels. The low carbon content of 304L improves weldability and reduces the risk of carbide precipitation, thereby maintaining overall system integrity. These fittings are highly resistant to corrosion, oxidation and staining, making them ideal for a wide range of applications including pharmaceutical, food processing and marine etc. Their smooth finish makes for easy maintenance and excellent aesthetic appeal.
Yes, custom sizes for Stainless Steel 304/304L Forged Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
Stainless Steel 304 / 304L Forged Fittings are widely applied in industries requiring reliable and corrosion-resistant piping systems. They are commonly used in chemical and petrochemical processing plants, oil & gas refineries, and water treatment facilities. The food, dairy, and pharmaceutical industries prefer them for their hygienic properties, ease of cleaning, and durability. In addition, they are used in power generation and marine applications where resistance to oxidation and stress corrosion is essential. With excellent weldability, strength, and resistance to harsh environments, SS 304 / 304L Forged Fittings provide dependable performance in critical and high-pressure piping systems.
