Hastelloy C22 Buttweld Fittings

Nguyen Fittings and Plates, located in Da Nang, Vietnam, is a reputable manufacturer and supplier of top-notch Hastelloy C22 Buttweld Fittings. These fittings are essential for industries that demand outstanding corrosion resistance, high strength, and dependable performance in harsh, high-temperature environments. The company is recognized for its precision manufacturing, commitment to international standards, and a strong focus on customer solutions. They provide durable, leak-proof, and efficient piping components tailored for sectors like chemical processing, petrochemical, oil and gas, marine, and power generation. With cutting-edge production technology and stringent quality control measures, Nguyen Fittings and Plates guarantees long-lasting, high-performance solutions for industrial piping systems around the globe.

Hastelloy Alloy N06022 Pipe Fittings Thailand, Inconel C22 Buttweld Fittings Thailand, Hastelloy N06022 Butt weld Fittings Bangkok, Hastelloy 2.4602 Buttweld Fittings West Midlad, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings Chiang Mai, Nickel Alloy N06022 Buttweld Pipe Fittings Rayong, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in Mumbai Nonthaburi.

Hastelloy C22 Buttweld Fittings Specification

Specifications

ASTM B366 / ASME SB366

DIMENSIONS

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″

Type

Seamless / Welded / Fabricated

Thickness

20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Schedule

Sch 5 TO Sch XXS.

Hastelloy C22 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Hastelloy C22 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Hastelloy C22 Buttweld Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

Hastelloy C22 Buttweld Fittings are crafted from a nickel-molybdenum-chromium-iron alloy designed to withstand both strong oxidizing and reducing environments, including chlorides, acids, and other highly corrosive substances. This alloy excels in resisting pitting, crevice corrosion, and stress corrosion cracking, all while maintaining impressive tensile, yield, and creep strength. Thanks to its thermal stability and metallurgical integrity, Hastelloy C22 Buttweld Fittings are ideal for critical piping systems that require durability, mechanical strength, and chemical resistance under extreme operating conditions.

Hastelloy C22 Buttweld Elbow Dimensions Standard

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Hastelloy N06022 Buttweld Cross Thailand, Hastelloy C22 Buttweld Pipe Nipple Thailand, Hastelloy Alloy N06022 Buttweld Reducer Bangkok, JIS NW 6022 Buttweld Elbow Pattaya, Nickel Alloy C22 Buttweld Pipe Cap Chiang Mai, ASME SB366 Alloy C22 Buttweld Fittings Rayong, Hastelloy® Alloy N06022 Buttweld Stub End Nonthaburi, Alloy N06022 Buttweld Tee Thailand, Alloy C22 Buttweld Welded Fittings Thailand, Hastelloy N06022 Pipe Fittings Supplier in Bangkok, Thailand.

Largest Hastelloy C22 Buttweld Fittings Supplier in Bangkok, Thailand

Teerasil Fittings is a leading supplier of Hastelloy C22 Buttweld Fittings in Bangkok, Thailand. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SIZE of Hastelloy Alloy C22 Buttweld Fittings

NPS (inch)	Pipe Sch.	Wall Thk. (in)	OD (inch)	Temperature
				100	200	300	400	500
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400
1″	40	0.133	1.315	2205	2205	2205	2047	1902
	80	0.179	1.315	3061	3061	3061	2841	2640
	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2″	40	0.145	1.900	1629	1629	1629	1512	1404
	80	0.200	1.900	2303	2303	2303	2138	1986
	160	0.281	1.900	3362	3362	3362	3120	2899
2″	40	0.154	2.375	1371	1371	1371	1272	1182
	80	0.218	2.375	1985	1985	1985	1843	1712
	160	0.344	2.375	3283	3283	3283	3047	2831
3″	40	0.216	3.500	1301	1301	1301	1208	1122
	80	0.300	3.500	1844	1844	1844	1712	1590
	160	0.438	3.500	2787	2787	2787	2587	2403
4″	40	0.237	4.500	1102	1102	1102	1023	950
	80	0.337	4.500	1596	1596	1596	1482	1377
	160	0.531	4.500	2611	2611	2611	2424	2552
5″	40	0.258	5.563	965	965	965	896	832
	80	0.375	5.563	1428	1428	1428	1325	1231
	160	0.625	5.563	2474	2474	2474	2296	2133
6″	40	0.280	6.625	877	877	877	814	756
	80	0.432	6.625	1379	1379	1379	1280	1189
	160	0.719	6.625	2382	2382	2382	2211	2054
8″	40	0.322	8.625	771	771	771	716	665
	80	0.500	8.625	1218	1218	1218	1131	1050
	160	0.906	8.625	2298	2298	2298	2133	1982
10″	40	0.365	10.750	699	699	699	649	603
	80	0.594	10.750	1159	1159	1159	1075	999
	160	1.125	10.750	2289	2289	2289	2124	1974

Why Choose Hastelloy C22 Buttweld Fittings from Teerasil Fittings?

Hastelloy C22 Buttweld Fittings from Teerasil Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy Alloy N06022 Pipe Fittings Thailand, Inconel C22 Buttweld Fittings Thailand, Hastelloy N06022 Butt weld Fittings Bangkok, Hastelloy 2.4602 Buttweld Fittings West Midlad, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings Chiang Mai, Nickel Alloy N06022 Buttweld Pipe Fittings Rayong, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in Mumbai Nonthaburi.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 Buttweld Fittings offer several key advantages, including exceptional resistance to a wide range of corrosive environments, such as oxidizing and reducing acids. They provide excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh chemical and pharmaceutical applications. Their high strength and durability ensure long-lasting performance under extreme temperatures. Additionally, Hastelloy C22 offers excellent weldability and fabricability, reducing downtime during installation and maintenance. These fittings are highly reliable, making them a preferred choice in industries that require superior corrosion resistance and performance.

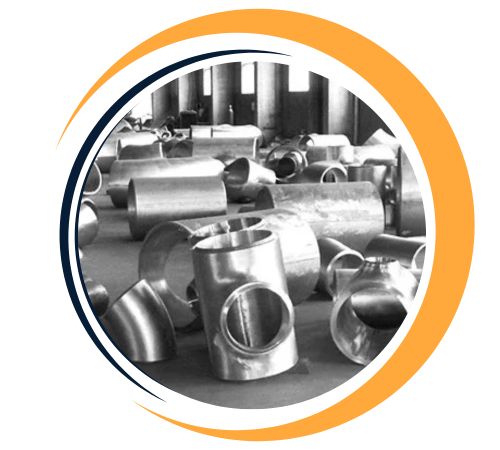

Types of Hastelloy C22 Buttweld Fittings

Are Custom Sizes Available for Hastelloy C22 Buttweld Fittings?

Yes, custom sizes for Hastelloy C22 Buttweld Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com.

Hastelloy N06022 Buttweld Cross Thailand, Hastelloy C22 Buttweld Pipe Nipple Thailand, Hastelloy Alloy N06022 Buttweld Reducer Bangkok, JIS NW 6022 Buttweld Elbow Pattaya, Nickel Alloy C22 Buttweld Pipe Cap Chiang Mai, ASME SB366 Alloy C22 Buttweld Fittings Rayong, Hastelloy® Alloy N06022 Buttweld Stub End Nonthaburi, Alloy N06022 Buttweld Tee Thailand, Alloy C22 Buttweld Welded Fittings Thailand, Hastelloy N06022 Pipe Fittings Supplier in Bangkok, Thailand.

Application Industry of Hastelloy C22 Buttweld Fittings

These fittings find extensive use in chemical and petrochemical plants, reactors, heat exchangers, and pipelines that transport aggressive media like hydrochloric, sulfuric, and nitric acids. In the oil and gas sector, they are employed in offshore platforms, subsea pipelines, and high-pressure systems. Marine applications include seawater piping, valves, and pump assemblies, while the power generation and pharmaceutical industries utilize them in boilers, condensers, and process lines that face corrosive environments. Their unique combination of properties makes them a go-to choice for demanding applications.
