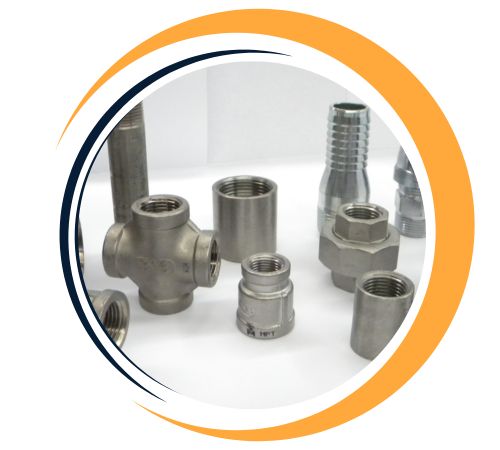

Teerasil Fittings and Plates is a top-notch manufacturer and supplier located in Thailand, Bangkok, specializing in high-quality Alloy Steel F22 Forged Fittings. These fittings are perfect for industries that demand exceptional strength, durability, and the ability to withstand high temperatures and pressures. The company is well-regarded for its precision manufacturing, strict compliance with international standards, and a strong focus on customer service, providing reliable solutions for critical applications in sectors like petrochemical, oil and gas, power generation, and chemical processing. With cutting-edge production technology and thorough quality control, Teerasil Fittings and Plates guarantees leak-proof, long-lasting, and high-performance fittings that are ideal for challenging industrial piping systems around the globe.
| Specification : | ASTM A182 F22 Forged Fittings |
|---|---|
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
Alloy Steel F22 Forged Fittings are crafted from a chromium-molybdenum steel alloy, which includes about 2% chromium and 1% molybdenum, along with other elements to boost their mechanical properties. This alloy is known for its impressive tensile and yield strength, toughness, and resistance to thermal fatigue and creep at high temperatures. These fittings perform exceptionally well in high-pressure and high-temperature settings, maintaining their shape and mechanical integrity even under stress. Their excellent weldability and machinability make them a great choice for a variety of industrial applications that require both reliability and durability.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F22 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 8 – 10 | 0.9 – 1.1 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F22 Forged Fittings | 380 | 585 | 20 |
Teerasil Fittings is a leading supplier of Alloy Steel F22 Forged Fittings in Bangkok, Thailand. We offer an extensive range of Alloy Steel F22 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F22 Forged Fittings from Teerasil Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F22 Forged Fittings offer several advantages, including exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. Their excellent resistance to corrosion, oxidation, and wear ensures longevity in harsh environments. The fittings provide superior weldability and machinability, allowing easy installation and customization. With a balanced chemical composition, they deliver reliable performance in critical applications such as power plants, petrochemical industries, and marine systems. Additionally, their cost-effectiveness and compatibility with diverse industrial systems make Alloy Steel F22 Forged Fittings a preferred choice for demanding operations.
Yes, custom sizes for Alloy Steel F22 Forged Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F22 Forged Fittings | K21590 | 1.7380 | 2-1/4Cr-1/2Mo-Vd |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
You’ll find Alloy Steel F22 Forged Fittings in industries where high strength, heat resistance, and durability are essential. They’re commonly used in oil and gas pipelines, steam lines, high-pressure process systems, and petrochemical units. Power generation facilities utilize them in boilers, superheaters, and turbine piping, while chemical processing plants rely on them for reactors, heat exchangers, and high-temperature pipelines. Their unique combination of mechanical strength, thermal stability, and reliability ensures they deliver long-term performance and safety in demanding environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
