Stainless Steel 316TI Buttweld Fittings

Teerasil Fittings and Plates, headquartered in Bangkok, Thailand, is a well-known manufacturer and supplier of **Stainless Steel 316Ti buttweld fittings**, designed for high-temperature and corrosive applications. 316Ti is a titanium-stabilized 316 stainless steel variant with a better resistance to intergranular corrosion following welding or prolonged heat treatment. These buttweld fittings are best suited for applications that demand greater strength, weldability, and long-term durability. Teerasil offers extensive varieties of 316Ti fittings—elbows, tees, reducers, and caps—produced to international standards such as ASTM A403 and ASME B16.9 to ensure trouble-free performance in severe systems.

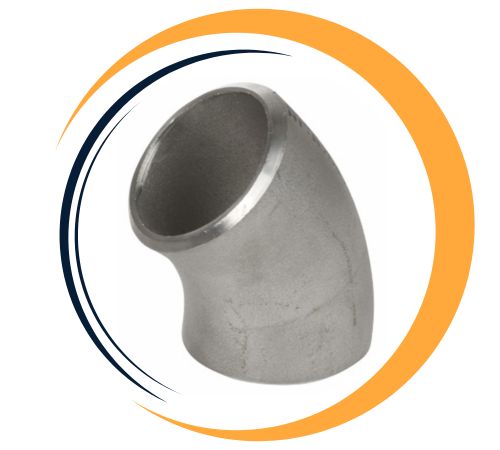

Stainless Steel 316TI Pipe Elbow In Thailand, Stainless Steel 316TI Pipe Fittings Thailand, SS 316TI Buttweld Elbow Bangkok, Stainless Steel S31635 Seamless Fittings Exporter Pattaya, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Chiang Mai, Stainless Steel 316TI Two Joint Pipe Fittings Rayong, 316TI Stainless Steel Welded Fittings Manufacturers in Nonthaburi, Stainless Steel 316TI Buttweld Fittings In Thailand, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Bangkok, Thailand.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless Steel 316Ti buttweld fittings consist of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a minimum of five times the carbon addition with titanium added. This stabilizing component avoids carbide precipitation under welding and high-temperature conditions, retaining corrosion resistance. These fittings provide tensile strength about 515 MPa and yield strength about 205 MPa with very good resistance to pitting, crevice corrosion, and scaling in high temperatures up to 870°C. The buttweld configuration provides leak-proof, strong, and smooth joints in pressure piping systems.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

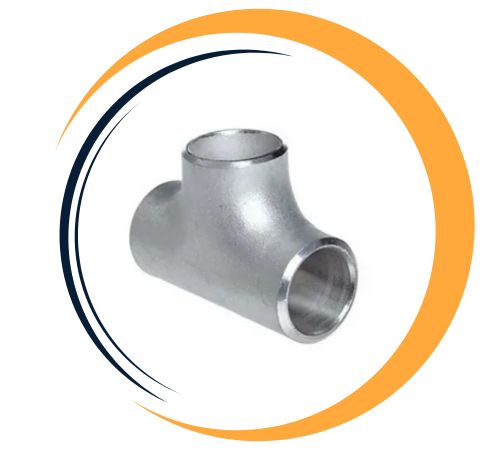

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in Thailand, Stainless Steel 1.4571 Buttweld Pipe Fittings Thailand, SS 316TI Butt Weld Pipe Cap Bangkok, Stainless Steel 316TI Eccentric Reducer Pattaya, Stainless Steel 316TI Equal Tee Chiang Mai, 316TI Stainless Steel Reducer in Rayong, Stainless Steel 316TI SR Elbow Exporter in Nonthaburi,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Bangkok, Thailand

Teerasil Fittings is a leading supplier of Stainless Steel 316TI Buttweld Fittings in Bangkok, Thailand. We offer an extensive range of Stainless Steel 316TI Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Teerasil Fittings?

Stainless Steel 316TI Buttweld Fittings from Teerasil Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings Thailand, Stainless Steel 316TI Pipe Bend Stockist in Bangkok, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in Pattaya, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Chiang Mai, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Rayong, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in Nonthaburi, Stainless Steel 316TI Pipe Butt weld Fittings In Thailand, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Bangkok, Thailand.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 316TI Buttweld Fittings provide excellent corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications The addition of titanium increases the alloy’s sensitivity during welding and resistance intergranular corrosion. These materials provide excellent strength and durability at high temperatures and are highly resistant to oxidation. They are also more versatile, offer better manufacturability and weldability, and provide reliable, durable durability in harsh environments. Furthermore, 316TI fittings maintain structural integrity even under cyclic loading conditions, ensuring safety and reliability in critical applications.

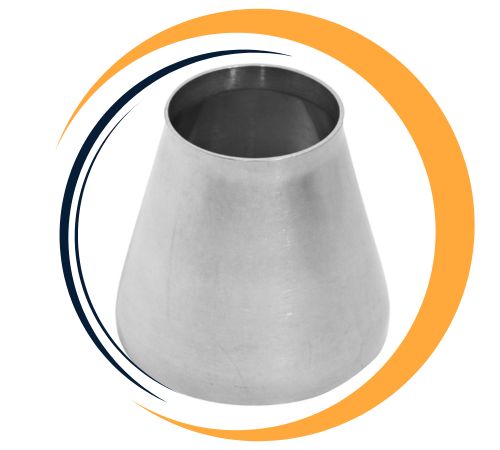

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com.

ASTM A403 Stainless Steel 316TI Butt Weld Cross in Thailand, Stainless Steel 28011 Buttweld Pipe Fittings Thailand, SS 316TI Butt Weld Pipe Cap Bangkok, Stainless Steel 316TI Eccentric Reducer Pattaya, Stainless Steel 316TI Equal Tee Chiang Mai, 316TI Stainless Steel Reducer in Rayong, SS 316TI SR Elbow Exporter in Nonthaburi,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316Ti buttweld fittings are employed extensively in applications where high temperatures and corrosive media prevail. They deal with acidic and chloride-containted materials in chemical and petrochemical plants. Refineries and power plants utilize them in heat exchangers, superheaters, and boiler equipment. They work effectively against saltwater corrosion in marine applications. 316Ti is also used in food processing, pharmaceutical, and pulp and paper industries due to its hygiene, hardness, and resistance to thermal degradation. These fittings provide long service life, less maintenance, and secure operation in harsh conditions.
