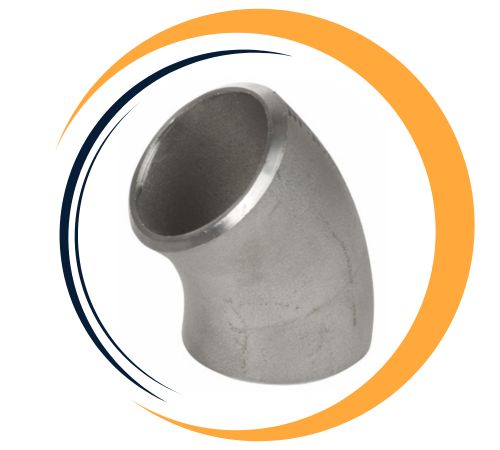

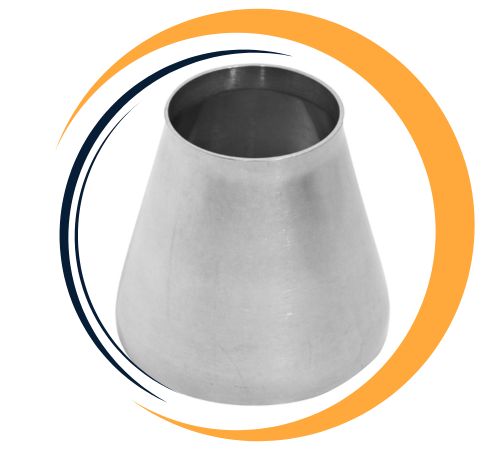

Teerasil Fittings and Plates, a company from Bangkok, Thailand, is a reliable producer and distributor of **Stainless Steel 304H buttweld fittings**, suitable for use in high-temperature conditions demanding superior strength and resistance to corrosion. Stainless Steel 304H is a high-carbon version of stainless steel 304 with greater mechanical properties and resistance to creep at high temperatures. Teerasil offers a full assortment of 304H buttweld fittings like elbows, tees, reducers, and caps produced to international specifications like ASTM A403, guaranteeing durability and consistent performance in power generation, chemical processing, and petrochemical plants.
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Stainless Steel 304H butt-weld fittings have about 18–20% chromium, 8–10.5% nickel, and a carbon content of 0.04% to 0.10%, which enhances tensile strength to about 620 MPa and yield strength to about 310 MPa. The increased carbon content enhances high-temperature strength and creep resistance with good corrosion resistance and weldability. These fittings also provide good oxidation resistance and durability in thermal cycling conditions.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Teerasil Fittings is a leading supplier of Stainless Steel 304H Buttweld Fittings in Bangkok, Thailand. We offer an extensive range of Stainless Steel 304H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel 304H Buttweld Fittings from Teerasil Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 304H Buttweld Fittings offer excellent mechanical properties, high thermal strength and corrosion resistance, making them ideal for critical operating conditions They maintain structural integrity at high temperatures, ensuring long life and performance in heat exchanger, power plant and chemical processing applications Their high carbon content resists creep increases, thereby reducing the risk of deformation over time. These components are easily welded, providing a secure, watertight connection. Additionally, 304H’s versatility and scaling resistance make it suitable for a wide range of applications, from petrochemical to food processing.
| SS 304/304L | ||||||
|---|---|---|---|---|---|---|
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Yes, custom sizes for Stainless Steel 304H Buttweld Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com.
Stainless Steel 304H buttweld fittings find extensive application in boilers, heat exchangers, pressure vessels, and furnace parts where corrosion resistance and high-temperature strength are of prime importance. Power plants, petrochemical refining, and chemical processing industries depend on 304H fittings to operate safely for extended periods at extreme thermal conditions. 304H fittings ensure secure, leak-free joints that endure harsh conditions and mechanical loads.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
