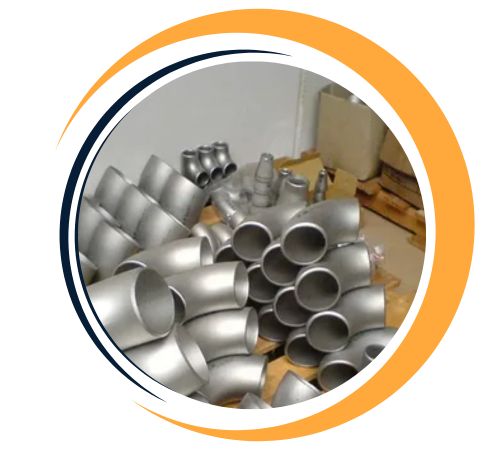

Nguyen Fittings and Plates is a well-respected manufacturer and supplier located in Da Nang, Vietnam, specializing in high-quality Inconel 600 Pipe Fittings. These fittings are essential for industries that require durability, corrosion resistance, and reliable performance in extreme temperatures. The company has built a solid reputation for its precision engineering, adherence to global standards, and unwavering commitment to customer satisfaction. Inconel 600 Pipe Fittings find their place in various sectors, including chemical processing, aerospace, marine, oil and gas, and power generation. With state-of-the-art production facilities, rigorous quality control, and a focus on service, Nguyen Fittings and Plates delivers dependable solutions that cater to the intricate demands of critical industrial piping systems around the globe.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc
Inconel 600 pipe fittings are primarily composed of Nickel (72%), Chromium (14-17%), and Iron (6-10%), with trace amounts of manganese, silicon, sulfur, and carbon. This unique blend ensures exceptional resistance to oxidation, corrosion, and high temperatures. These fittings exhibit a tensile strength of 655 MPa, a yield strength of 310 MPa, and an elongation of 40%. Their melting range is 1354–1413°C, making them suitable for extreme environments. With excellent mechanical stability, Inconel 600 fittings perform reliably under stress, high pressure, and thermal cycling.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 600 Pipe Fittings are made from a nickel-chromium-iron alloy, consisting of about 72% nickel, 14–17% chromium, and 6–10% iron. This unique blend offers remarkable resistance to oxidation, carburization, and chloride-ion stress corrosion cracking. The alloy retains its strength, ductility, and metallurgical stability across a wide temperature range, performing well in both oxidizing and reducing environments. Its impressive mechanical properties, including high tensile and yield strength, ensure that it maintains integrity under pressure, thermal cycling, and corrosive conditions. These features make it an excellent choice for piping systems that require both corrosion protection and mechanical stability in demanding industrial settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 600 Pipe Fittings from Teerasil Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
Inconel 600 pipe fittings offer numerous advantages, making them ideal for demanding applications. They exhibit outstanding resistance to high temperatures, oxidation, and corrosion, even in harsh environments such as chemical processing and marine industries. These fittings maintain excellent mechanical strength under extreme thermal cycling, ensuring durability and reliability. Their superior metallurgical stability minimizes stress cracking, pitting, and crevice corrosion, enhancing longevity. Additionally, Inconel 600 is versatile, performing well in acidic and alkaline conditions, and is easy to machine and weld, offering flexibility in various industrial applications.
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Yes, custom sizes for Inconel 600 Pipe Fittings are available at Teerasil Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@teerasilfittings.com.
Inconel 600 Pipe Fittings are widely utilized in furnace equipment, heat exchangers, condensers, chemical processing units, and components for gas turbines. In the aerospace industry, they are found in engine parts and exhaust systems that face high heat and corrosive gases. The oil and gas sector depends on these fittings for offshore drilling systems, valves, and high-pressure piping in challenging environments. Power generation facilities also incorporate these fittings in steam lines, ensuring efficient and safe operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
